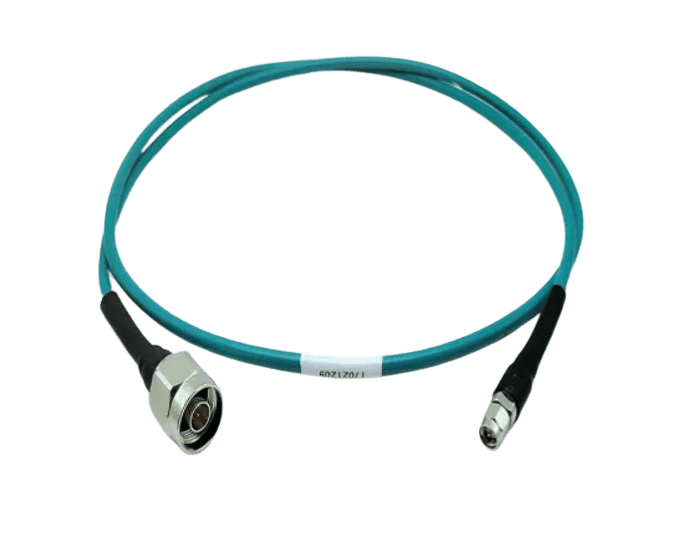

SMA(M) to N(M) Ultra Flexible Test Cable Assembly Upto-6GHz
Original price was: ₹26,680.00.₹22,080.00Current price is: ₹22,080.00.
| SMA(M) to N(M) Ultra Flexible Test Cable Assembly Upto-6GHz | Featuring SMA male to N-type male connectors, this ultra-flexible test cable assembly supports frequencies up to 6 GHz. Its flexibility makes it suitable for applications requiring frequent movement or tight spaces. |
The cable assembly features SMA male connectors on one end and N male connectors on the other end. It is specifically designed to handle frequencies up to 6 GHz while offering flexibility for ease of use in different environments.
Specifications
- Connector Types:
- SMA(M): SMA male connector.
- N(M): N male connector.
- Frequency Range:
- Up to 6 GHz: Suitable for a wide range of RF and microwave applications up to 6 GHz.
- Impedance:
- 50 ohms: Standard impedance for RF and microwave applications, ensuring compatibility with most equipment.
- Attenuation:
- Low Attenuation: Designed to minimize signal loss across the frequency range. Typical attenuation values are:
- 0.5 to 1 dB/m at 6 GHz, but specific values can vary based on cable length and construction.
- Low Attenuation: Designed to minimize signal loss across the frequency range. Typical attenuation values are:
- Shielding:
- High Shielding: Provides protection against electromagnetic interference (EMI) and radio frequency interference (RFI). Shielding typically includes:
- Foil Shield: A layer of aluminum foil or similar material.
- Braided Shield: A layer of copper or aluminum braid for additional protection.
- Additional Shielding: Some cables may have extra layers of shielding for enhanced performance.
- High Shielding: Provides protection against electromagnetic interference (EMI) and radio frequency interference (RFI). Shielding typically includes:
- Dielectric:
- Made from high-quality materials such as foam polyethylene (PE) or expanded Teflon (PTFE), which help to maintain impedance and minimize signal loss.
- Conductor:
- Material: Usually made of solid copper or copper-clad steel, optimized for minimal resistance and good signal transmission.
- Jacket:
- Constructed from ultra-flexible materials like flexible PTFE or other low-loss, high-temperature materials. The flexible jacket allows for easy handling and installation in tight spaces.
- Length:
- Available in various lengths, customized based on specific application needs.
- Flexibility:
- Ultra-Flexible: Designed for high flexibility, making it suitable for dynamic testing environments where the cable needs to be bent or repositioned frequently.
Applications
- Testing and Measurement: Connecting test equipment and devices in laboratory or field settings where flexibility and high-frequency performance are required.
- Communication Systems: Used in RF and microwave systems for connecting various components where high flexibility and frequency handling are important.
- Broadcast and Aerospace: Suitable for applications in broadcast systems and aerospace where reliability and flexibility are critical.
Performance Characteristics
- High Performance: Maintains signal integrity and minimizes loss up to 6 GHz.
- Low Loss: Ensures minimal signal degradation, important for accurate testing and measurement.
- High Flexibility: Allows for easy handling and installation in various environments, including confined spaces.
Considerations
- Connector Compatibility: Verify that SMA male and N male connectors are compatible with your equipment.
- Cable Length: Select the appropriate length to prevent excessive signal loss or performance issues.
- Quality of Construction: High-quality cables generally offer better performance and durability, particularly important for high-frequency applications.
| Brand | RF CONNECTOR HOUSE |
|---|---|
| Inner Conductor | Silver Plated |
| copperwire | 0.92mm |
| Insulation | PE – 2.95mm |
| Inner Shield | Silver plated copper wire – 3.45mm |
| Outer Shield | Silver plated copper wire – 3.95mm |
| Wire | 3.95mm |
| Jacket | PVC – 5.20mm |
| Bending radius | 25.4mm |
| Frequency | 6GHz |
| Impedance | 50 ohm |
| Max. Power | 100W |
