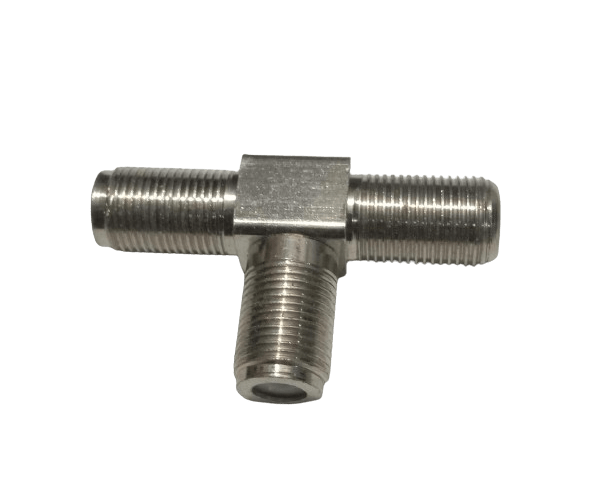

T TYPE F (F-F-F) ADAPTOR 3GHZ
Original price was: ₹240.00.₹200.00Current price is: ₹200.00.
| T TYPE F (F-F-F) ADAPTOR 3GHZ | The T-Type F (F-F-F) adaptor is designed for RF and signal distribution applications, supporting frequencies up to 3GHz. It features F-type female connectors on all three ends, allowing for the splitting of a single F connection into three outputs. This adaptor is ideal for use in telecommunications, broadcast systems, and test equipment, providing reliable signal distribution with minimal insertion loss. Its robust construction ensures durability and long-term performance. |
This T-Type adapter features three F-type female connectors arranged in a T-shaped layout. It allows for a single signal to be split into two paths or to combine signals from two sources into one output. It is suitable for use in applications up to 3 GHz.
Specifications:
- Frequency Range:
- Up to 3 GHz: Effective up to 3 GHz, making it suitable for many RF and signal distribution applications. Confirm this range is appropriate for your specific needs.
- Impedance:
- 75 Ohms: F-type connectors are typically used in 75-ohm systems, which are common in video and broadcast applications.
- Connector Types:
- F Female: All three connectors are F-type female connectors, featuring a center socket and a threaded coupling mechanism for secure connection.
- Insertion Loss:
- Typically ≤ 0.5 dB: Represents the amount of signal power lost as it passes through the adapter. Lower insertion loss is better for maintaining signal strength.
- Return Loss:
- Typically ≥ 15 dB: Indicates how well the adapter maintains impedance matching. Higher return loss values reflect less signal reflection and better performance.
- VSWR (Voltage Standing Wave Ratio):
- Typically ≤ 1.5: Shows how effectively the adapter maintains impedance and minimizes signal reflections. Lower VSWR values are preferable for preserving signal quality.
- Construction Material:
- Body: Typically made from durable materials such as brass or stainless steel.
- Plating: Often gold or nickel-plated to ensure good conductivity and resistance to corrosion.
- Temperature Range:
- Typically -55°C to +165°C: Ensures reliable operation in various environmental conditions.
- Size and Weight:
- Compact Design: Designed to be compact and durable, suitable for integration into RF and signal distribution systems with space constraints.
Example Part Number:
- Manufacturer: Look for RF and signal distribution component suppliers such as Amphenol, Pasternack, or similar companies.
- Part Number Example: Models like Pasternack PE4515 or similar might be used. Always verify the exact part number and specifications with the supplier.
Applications:
- RF and Signal Distribution Systems: Distributes or combines signals in systems that use F-type connectors.
- Video and Broadcast Applications: Common in video and broadcast equipment where F-type connectors are standard.
- Test and Measurement: Useful in setups where splitting or combining signals is required.
Visual Inspection:
- Connector Compatibility: Ensure that all three F-type female connectors are properly aligned and threaded for secure connection.
When selecting a T-Type F (Female-Female-Female) adapter, ensure it meets your frequency, impedance, and performance requirements. Always consult datasheets and specifications provided by the manufacturer to ensure compatibility and optimal performance for your specific application.
| Brand | RF CONNECTOR HOUSE |
|---|---|
| Body | Brass SS |
| Center Conductor | Phosphor Copper |
| Frequency Range | DC-3GHz |
| VSWR | 1.5 |
| Impedance | 50Ω |
| Insertiona Loss | ≤0.10 dB |
| Insulator | PTFE Teflon |
| Durability | Mating Cycles ≥606 |
| Operating Temperature Range | -40℃～+85℃ |
| Compliance | ROHS |
